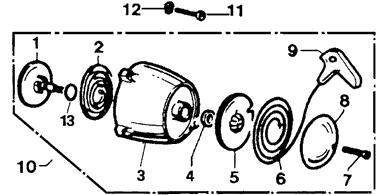

Starter System
Position | Description | Part Number | Unit Price | Click to order |
1 | Starter pulley axle | 1047 | 24.50$ | |
2 | Starter spring | 1051 | 14.90$ | |
3 | Starter hosuing w/oil seal | 2040 | 45$ | |
4 | Water seal | 1050 | 5.80$ | |
5 | Starter pulley | 1046 | 9.90$ | |
6 | Starter rope | 2009 | 4.50$ | |
7 | Conical screw 4x16 | 1049 | 0.45$ | |
8 | Nosepiece | 1045 | 10.90$ | |
9 | Starter handle | 1052 | 4.90$ | |
10 | Starter Complete | 2007 | 145$ | |
11 | Screw, starter housing 5x25 | 1022 | 0.45$ | |
12 | Washer | 1018 | 0.25$ | |
13 | O ring , starter axle | 1062 | 0.95$ |
